Move soil, pallets and jobsite materials with a seated loader sized for landscaping, farms, property maintenance and compact construction work. Compare 300 kg and 500 kg classes, wheels or tracks, engine configurations and attachment requirements before ordering.
“Small” should describe the working envelope and application, not imply every compact machine is the same. A seated small skid steer sits between a rear-platform mini loader and a larger skid steer: it gives the operator a seat and lift-arm carrier while keeping the chassis within a compact 300 kg or 500 kg class.
| Option | Best starting point | Operating layout | Main selection questions |
|---|---|---|---|
| Stand-on mini loader | Frequent step-on/step-off work and very compact routes | Rear platform | Surface, workflow, hydraulics and tools |
| Seated small skid steer | Repeated loading, landscaping, farm and compact yard work | Seated; wheeled or tracked | Body/bucket width, rated load, engine, undercarriage and attachments |
| Broader skid steer range | Higher-capacity or wider review | Seated or stand-on by model | Exact load, dimensions, lift geometry and hydraulic circuit |
Begin with access and load, then check ground conditions and tool requirements. The 300 kg class prioritizes a narrower body. The 500 kg class adds rated-load direction and a wider working envelope.
Models: S300 / SL300 / S350 / SL350
With an approximately 850 mm body and 900 mm standard bucket, this class suits restricted landscaping routes, greenhouse or farm access, compact yards and light material handling after the complete machine-and-attachment envelope is checked.
Models: S500 / SL500 / JS500 / JSL500
With an approximately 1,100 mm body and 1,100 mm standard bucket, this class is the stronger starting point for heavier landscaping materials, pallet work, farm handling and attachments within the confirmed machine rating.
Note: Final rated operating load, engine, undercarriage, attachment compatibility and included scope are confirmed for the selected configuration in the written quotation.
| Model family | Undercarriage | Engine configuration | Body L × W × H | Standard bucket | Approx. weight | Class |
|---|---|---|---|---|---|---|
| S300/SL300 | Wheeled/tracked | Runtong R740-1 gasoline, 739 cc | 1,960 × 850 × 1,400 mm | 900 × 420 × 600 mm | 920 kg | 300 kg class |
| S350/SL350 | Wheeled/tracked | Kepu KD292FA diesel, 0.997 L | 1,960 × 850 × 1,400 mm | 900 × 420 × 600 mm | 920 kg | 300 kg class |
| S500/SL500 | Wheeled/tracked | Laidong three-cylinder diesel | 1,960 × 1,100 × 1,400 mm | 1,100 × 420 × 600 mm | 1,020 kg | 500 kg class |
| JS500/JSL500 | Wheeled/tracked | Kubota 1105 diesel | 1,960 × 1,100 × 1,400 mm | 1,100 × 420 × 600 mm | 1,020 kg | 500 kg class |
Callout: Engine size does not establish rated load or powered-attachment compatibility. Compare confirmed load basis, stability, lift geometry, attachment weight, load center and hydraulic requirements together.
One machine supports several tasks only when the mount, hydraulics, controls and remaining operating margin match every tool.
Evaluate the entire route, slope, turning frequency, surface sensitivity and maintenance routine.

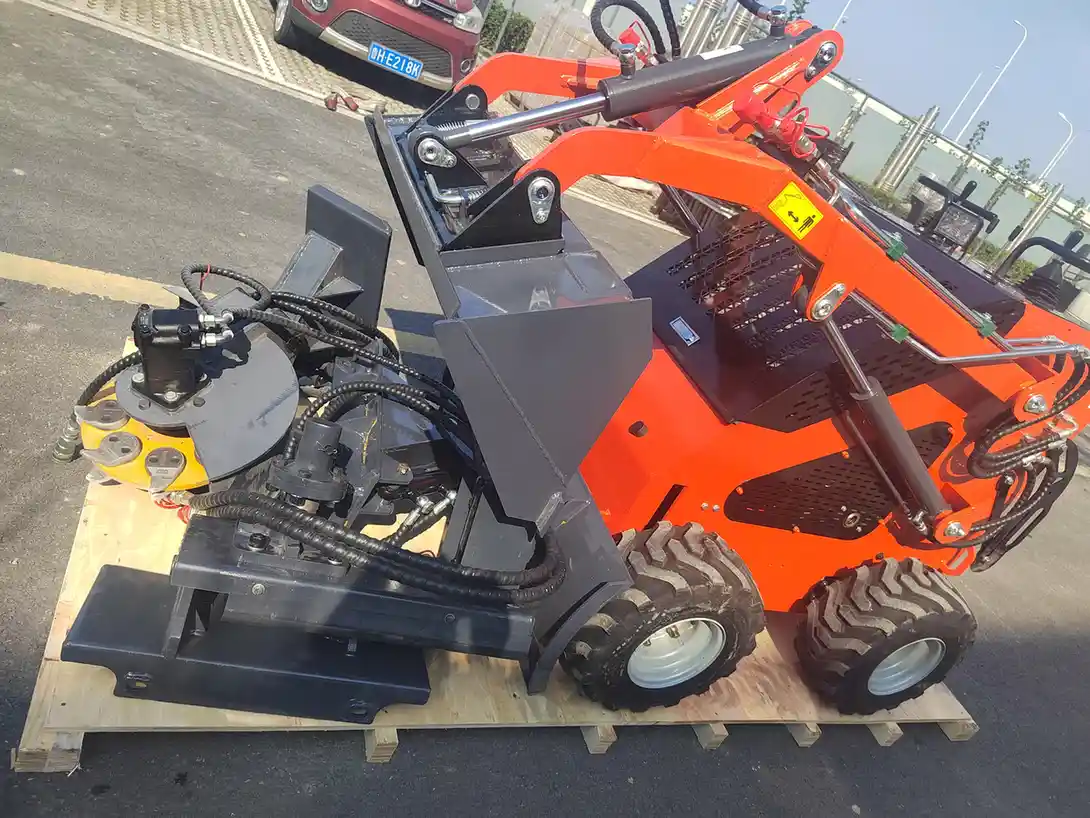

A tool can lock onto the carrier and still be unsuitable for its hydraulic circuit or remaining operating margin. Record the carrier and every powered attachment on the same technical scope.
| Check | Why it matters | What to confirm |
|---|---|---|
| Mechanical interface | secure lock and geometry | plate/pin type, lock and width |
| Flow and pressure | tool speed and heat | required and available values |

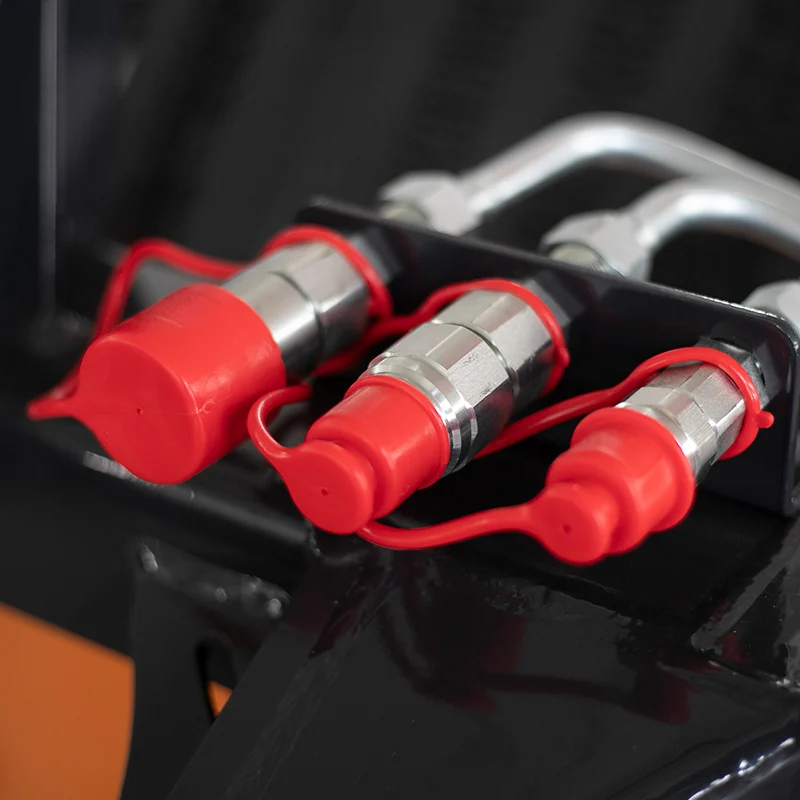

| Couplers and return | hose requirements differ | type/size, routing, case drain or return |
| Weight and load center | tool reduces usable load | tool weight, projected center and rating basis |
| Controls | multi-function tools need functions | control method and auxiliary functions |
Measure full attachment width, height, turn and transport route, not just the base machine chassis.
Compare rated load on the same basis plus tool weight, load center, lift height, stability and geometry.
Specify flow, pressure, couplers, return and controls before ordering to ensure full functionality.
Choose wheels or tracks from worst surface, slope, travel and maintenance realities on your actual site.
Safety: Use the exact operator and attachment manuals. Keep loads low, bystanders clear, avoid sudden slope turns, lower the tool and relieve pressure before service, and use specified safeguards around raised lift arms.
Note: Mud, sand, demolition dust and abrasive debris can shorten cleaning and inspection intervals significantly compared to standard schedules.
Hongrui manufactures compact skid steer loader configurations in Jining, Shandong, China. Before ordering, record the selected model, engine, undercarriage, attachment interface, hydraulic requirements and included scope together. After delivery, model and engine identification plus clear component photos help connect service or parts enquiries to the correct configuration.
Start with access envelope, ground sensitivity and attachment sequence. The 850 mm-body 300 kg class is narrower, but its standard bucket is about 900 mm. Tracks add traction on soft/uneven ground; wheels simplify firm-surface travel and upkeep. Confirm every tool against the exact carrier.
S300/SL300 and S350/SL350 use an approx. 1,960 × 850 × 1,400 mm body. The working width also includes the approx. 900 mm bucket, turning clearance, hoses and alternative tools.
Compare engines after access, rated-load and tool needs are defined. The 300 kg class includes Runtong gasoline and Kepu diesel; the 500 kg class includes Laidong and Kubota diesel. Engine size or brand does not replace capacity, stability or hydraulic checks.
Buckets move loose material; forks handle pallets; augers make planting/fence holes; grapples handle brush; sweepers clean yards; breakers support compatible light work. Confirm mount, flow, pressure, couplers, return, controls, weight and load center.
List repeat tasks, then record heaviest load, route width, barn/gate height, surface, slope, travel and tools. Use 300 kg class when access limits; review 500 kg class when load and tools require more capacity within the confirmed rating.
Daily checks cover fluids, leaks, hoses, couplers, locks, tires/tracks, cooling paths, guards and damage. Cleaning, lubrication and service intervals follow the exact model, engine and environment manuals.
Share the narrowest route, surface, heaviest material, working height and required attachments. Hongrui will use those inputs to discuss a 300 kg or 500 kg class direction and prepare a configuration scope for quotation.
