Before feeding
Move round or square bales, feed totes and palletized supplies. Confirm bale type, actual weight, attachment weight, load centre, carry route and stacking height before selecting the rated-load class.
RANCH WORK STARTS BEFORE THE GATE OPENS
Skid Steer for Ranch Work: One Carrier for Feeding, Corrals and Fence Lines
Match the loader to the heaviest bale, narrowest gate, worst ground and powered attachment—not to acreage alone. Compare compact wheeled and tracked configurations for the work that repeats across the ranch.
Bale and feed handlingCorral and bedding cleanupFence and post workBrush and material control
Direct answer
What Is a Skid Steer for Ranch Work?
A ranch skid steer is a compact loader configured for brush clearing, feed and bale handling, fence work, grading and material movement across varied ranch surfaces.
For an accurate quotation, start with the application, access limits and required attachment—not an unverified model number.
| Decision layer | What belongs here |
|---|---|
| Known from the buyer | Gate and barn access, terrain, brush density, bale or material weight, lift needs and seasonal tasks. |
| Configured for the project | Track or wheel system, capacity, lift path, hydraulic flow, guarding and attachments such as grapple, auger or forks. |
| Verified before order | Dimensions, stability and capacity, attachment compatibility, protection package, inspection record and delivery plan. |
ONE MACHINE, DIFFERENT WORK WINDOWS
Start with the Task That Cannot Wait
A useful ranch loader is not selected by a generic “all-purpose” label. Begin with the job that sets the highest load, access, traction or hydraulic demand, then confirm that the same carrier can cover the remaining work safely.

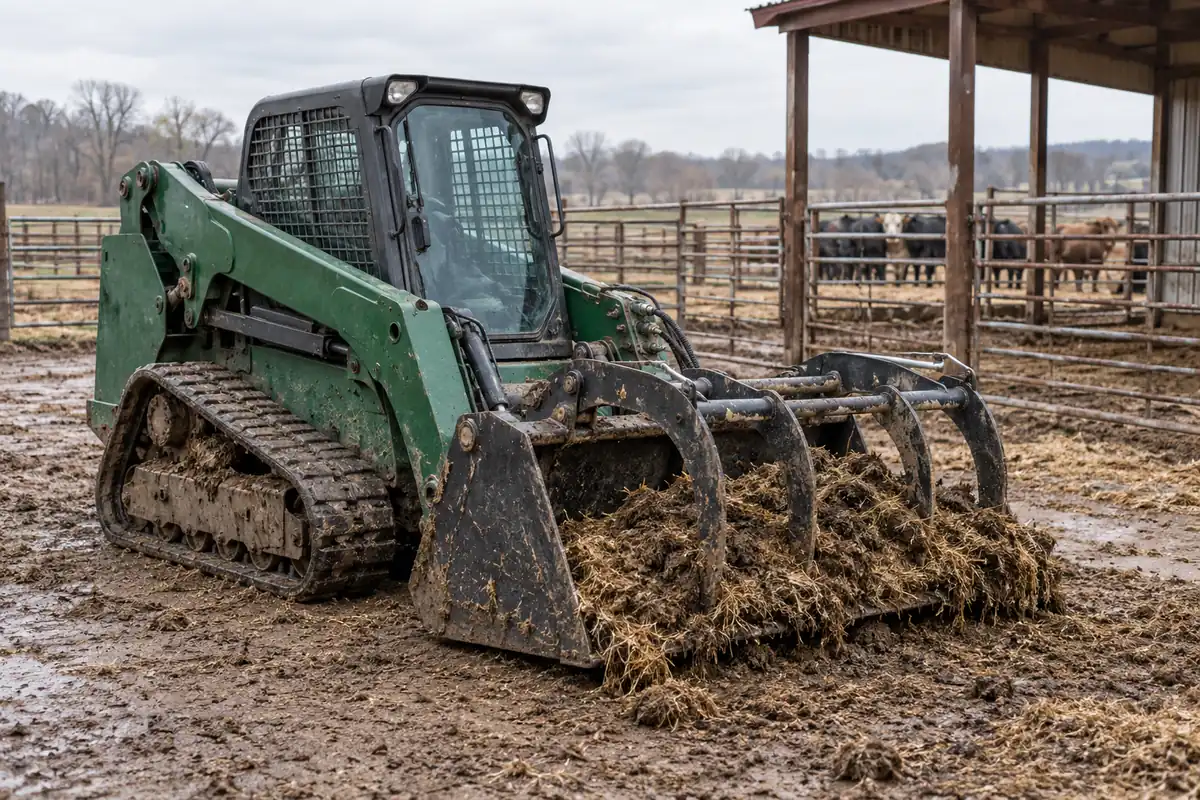

After livestock movement
Clean bedding, loose manure and packed material from pens and alleys. Bucket width, gate clearance, breakout requirement, floor condition and clean-out frequency change the preferred carrier and tool.
During fence work
Carry posts, wire and tools; drill post holes only after confirming auger flow, pressure, couplers, return path and control functions. Measure overhead and turning clearance at every gate.

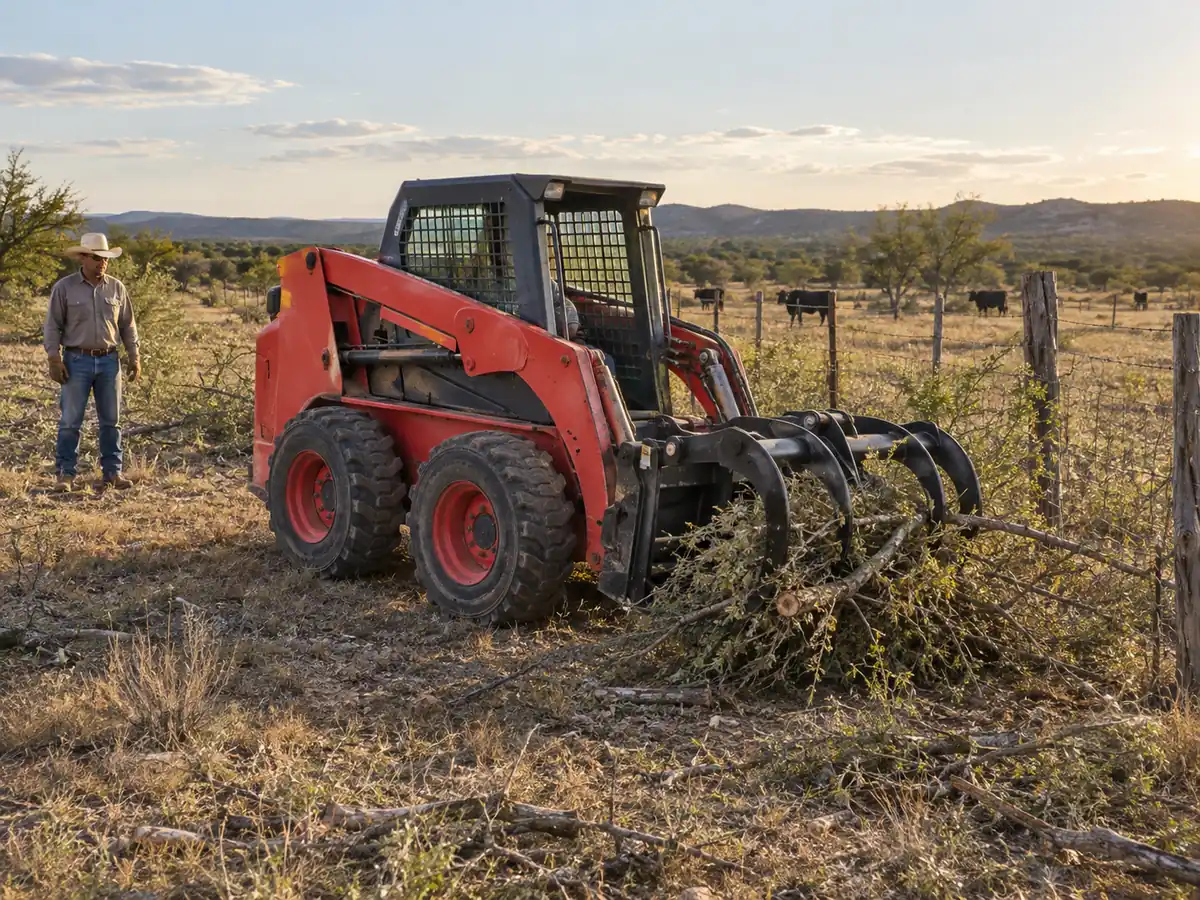

After storms or brush growth
Move cut limbs and controlled brush with a compatible grapple. Attachment weight, load shape, visibility, slope and tire or track condition matter more than a generic attachment list.
MODEL AND CARRIER CHOICE
Choose the Carrier Before You Choose the Attachment
Hongrui’s seated skid steer range provides two practical rated-load directions. Engine and model choices sit inside those classes; the final configuration must be checked with the fitted tool and the ranch route.
| Configuration reference | Rated-load direction | Verified engine direction | Approximate body width | Approximate machine weight | Ranch selection cue |
|---|---|---|---|---|---|
| S300 / SL300 | 300 kg class | Runtong R740-1 gasoline, 739 cc | 850 mm | 920 kg | Start here when narrow access and lighter repeated handling set the limit. |
| S350 / SL350 | 300 kg class | Kepu KD292FA diesel, 0.997 L | 850 mm | 920 kg | Diesel direction for the same compact-width class; verify the complete duty cycle. |
| S500 / SL500 | 500 kg class | Laidong three-cylinder diesel | 1,100 mm | 1,020 kg | Wider, higher rated-load direction for repeated material and livestock-facility work. |
| JS500 / JSL500 | 500 kg class | Kubota 1105 diesel | 1,100 mm | 1,020 kg | Alternative engine direction within the 500 kg seated class. |
20 MPa
Hydraulic working pressure
Hydraulic working pressure
≈2,000 mm
Lift height
Lift height
Up to 10 km/h
Travel speed
Travel speed
900 × 420 × 600 mm
300 kg-class bucket
300 kg-class bucket
1,100 × 420 × 600 mm
500 kg-class bucket
500 kg-class bucket
These are configuration references, not a promise of suitability for every bale, slope or attachment. Rated-load basis, tool weight, load centre, lift geometry and stability must be reviewed together. Final specifications and included scope are confirmed in the written quotation.
TOOL MATCHING
A Ranch Attachment Is a Machine-and-Tool System
Bale type and weight; bedding density; manure condition; post diameter; brush size and shape.
Rated-load basis, attachment weight, load centre, lift path, slope and visibility.
Mounting plate, locking engagement, tool width and physical clearance.
Required versus available flow and pressure, couplers, return path and control functions.
Gate width, barn aisle, overhead clearance, turn, surface, livestock separation and transport.
Bale spear or bale grapple
For round, square or wrapped bales. Confirm bale size, weight, wrap sensitivity, tine or grapple geometry and stacking height.
Bucket or manure grapple
For loose feed, bedding and corral clean-out. Confirm material density, floor condition, opening width and retained load.
Pallet forks
For feed, fencing supplies and packaged loads. Confirm pallet dimensions, load centre, fork engagement and route.
Auger
For post holes and fencing. Confirm bit diameter, soil, flow, pressure, couplers, return and auxiliary controls.
Brush grapple
For cut brush and fence-line cleanup. Confirm bundle size, attachment weight, visibility, slope and safe livestock exclusion.
Mounting compatibility does not confirm hydraulic compatibility, operating stability or task suitability.
CORRALS, ALLEYS AND WET GROUND
Plan for the Worst Surface in the Work Cycle
A dry yard can make almost any machine look suitable. The harder decision appears after rain, during winter bedding removal or where repeated travel softens the same lane. Compare traction, ground disturbance, cleaning time and undercarriage wear against the work that must continue.
- Firm concrete or packed yard: wheeled configurations may simplify travel and tire maintenance.
- Recurring mud or loose soil: a tracked configuration may improve access, but adds cleaning, tension and track-wear checks.
- Narrow alleys: verify machine width together with the fitted bucket or grapple width.
- Livestock areas: separate animals before operation and preserve visibility around gates, people and pen structures.
FENCING AND LAND MAINTENANCE
Use a Different Checklist for Brush, Posts and Rough Ground
Fence-line work combines irregular loads, limited visibility, slopes, puncture hazards and repeated turns. A compact carrier helps only when its attachment, tires or tracks, hydraulic circuit and route are treated as one operating plan.
- Measure gates, turns and overhead obstructions before the machine arrives.
- Keep brush bundles within the tool and carrier’s reviewed load case.
- Match auger demand to the full auxiliary circuit, not coupler appearance alone.
- Consider tire damage risk, track cleaning and service access for the actual terrain.
- Define a livestock and bystander exclusion area before loading, drilling or brush movement.
AVOID THE EXPENSIVE MISMATCH
Five Ranch Selection Mistakes to Catch Before Quotation
1–5
The machine fits the gate, but the attachment does not.
Consequence: Clean-out, feeding or fence work is blocked at the first narrow access point.
Response: Record both machine and fitted-tool width, overhead height, turn and exit route.
Bale weight is known, but load centre and attachment weight are missing.
Consequence: A nominal capacity comparison can overstate the useful margin for carrying or stacking.
Response: Document bale type, real weight, tool weight, geometry, carry height and placement height.
The couplers connect, but the powered attachment cannot run correctly.
Consequence: Tool speed, heat, return flow or control limitations interrupt the task.
Response: Compare required and available flow, pressure, couplers, return path and control functions on one specification sheet.
The machine is selected from the dry season.
Consequence: Wet lanes create slip, rutting, cleaning burden or avoidable undercarriage wear.
Response: Choose from the worst recurring surface and include the maintenance routine in the comparison.
Purchase price is compared without the attachment package.
Consequence: Adapters, hoses, couplers, transport or a second tool change the real project cost.
Response: Request one written machine-and-attachment schedule with included scope and destination requirements.
CONFIGURATION CLARITY
What a Written Ranch Loader Configuration Should Resolve
Model and engine direction
Rated-load basis with the selected attachment
Machine, tool and transport dimensions
Wheel or track configuration
Mounting interface
Required and available hydraulic flow and pressure
Couplers, return path and control functions
Included attachments, hoses and packing scope
The value is not a generic promise that one loader does everything. It is a reviewable configuration that connects the repeated ranch task to the carrier, attachment and route before shipment.

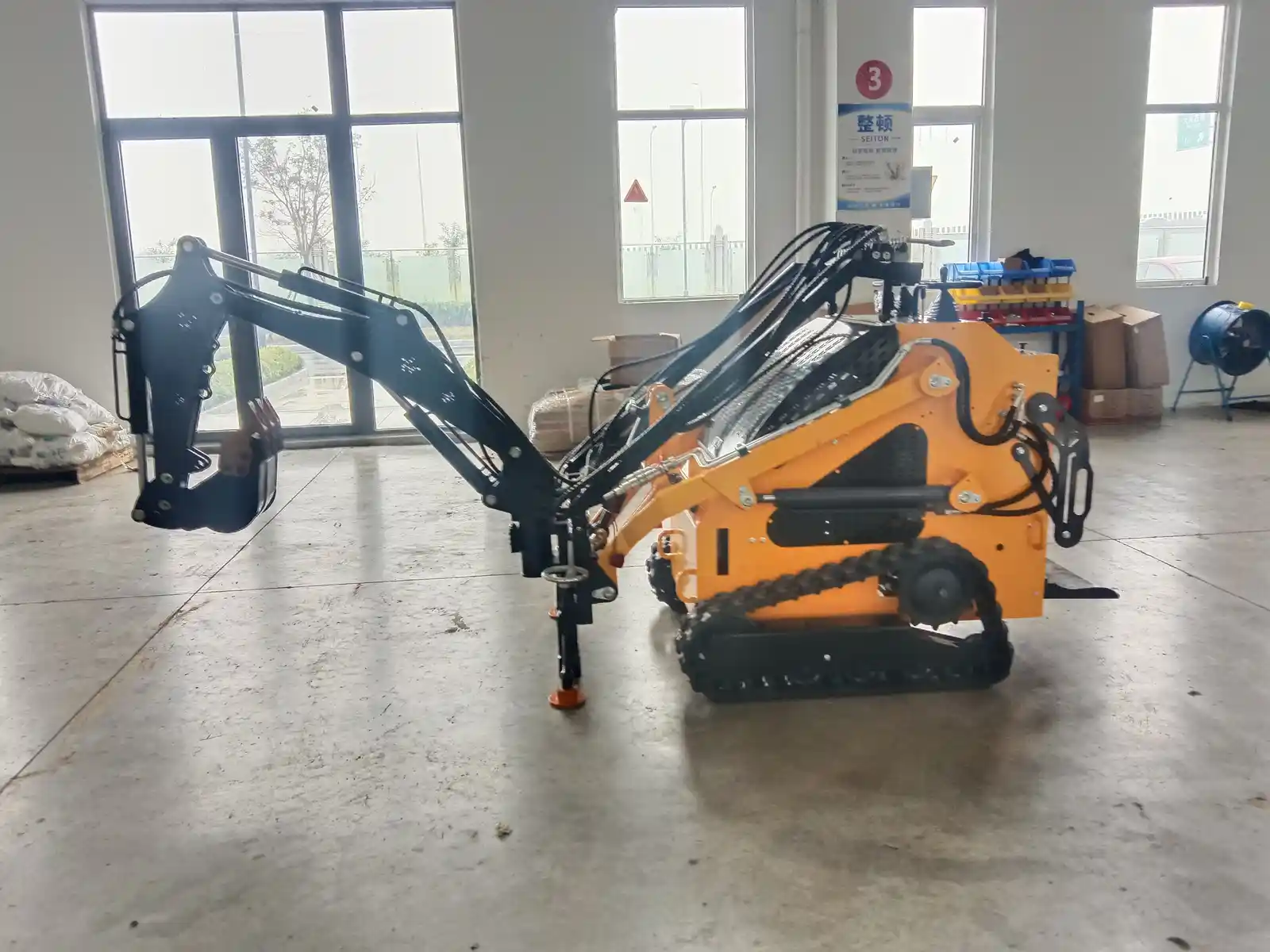

FROM REQUIREMENT REVIEW TO ASSEMBLY
Configuration Support Behind the Loader Package
Hongrui can use the task list, load, access, ground and attachment requirements to prepare a machine-and-tool configuration for quotation. The workshop process includes design and machining, welding and assembly, quality inspection, operation guidance, remote troubleshooting and parts coordination. The final written quotation defines the selected model, engine, undercarriage, attachment interface and included scope.
Requirement reviewDesign and machiningWelding and assemblyQuality inspectionOperation guidanceRemote troubleshooting and parts coordination
BUYER GUIDE
Questions to Answer Before Choosing a Skid Steer for Ranch Work
What is the best skid steer model for ranch work?
There is no defensible “best” model without the repeated task and route. Start with the heaviest bale or material load, fitted attachment weight and load centre, then check the narrowest gate, worst surface, slope, lift or stacking height and hydraulic demand. Hongrui’s 300 kg class prioritizes an approximately 850 mm body, while the 500 kg class moves to an approximately 1,100 mm body and a higher rated-load direction. Final suitability depends on the complete configuration.
What size skid steer makes sense for a small ranch?
Acreage alone is a weak sizing rule. A small ranch moving dense round bales or cleaning wet pens may need more carrier margin than a larger property doing light yard work. Select by the hardest repeated load, access envelope, ground and powered attachment, then confirm transport and destination unloading.
Which attachments cover the most common ranch tasks?
A practical starting package may include a bucket for loose material, pallet forks for packaged feed and supplies, a bale spear or grapple matched to the actual bale, and an auger for fencing. Add a manure grapple or brush grapple only when its load, width, mounting and hydraulic requirements match the selected carrier. The smallest compatible package that covers repeated work is more useful than the longest attachment list.
Wheels or tracks for a ranch skid steer?
Wheels are a practical starting direction for firm yards, frequent travel and simpler tire service. Tracks deserve evaluation when recurring mud, loose soil or uneven ground controls access. Compare the worst route, ground disturbance, cleaning time, tension checks, tire or track wear and transport—not only traction on one day.
How should brush-clearing capability be evaluated?
Start with the material size, bundle shape, terrain, slope, visibility and puncture risk. Then add the grapple’s weight and load centre to the carrier review. If the work involves cutting or powered tools rather than moving pre-cut brush, confirm the tool’s full hydraulic and safety requirements separately; do not infer capability from the mounting plate.
What makes a ranch skid steer affordable over its working life?
Compare the same task cycle and attachment package. Include fuel under the planned duty, tire or track wear, cleaning and inspection time, attachment service items, hoses and couplers, adapters, transport and the cost of a machine that cannot complete the hardest recurring task. Purchase price alone does not describe whole-package cost.
What should be included in a ranch loader quotation?
Ask for the exact model, engine, undercarriage, rated-load basis, dimensions, attachments, mounting interface, required and available hydraulic flow and pressure, couplers, return path, controls, included hoses, packing scope and destination requirements. This makes competing quotations comparable without assuming that similar-looking packages are equivalent.
BUILD THE RANCH PACKAGE
Configure the Loader Around the Work That Repeats
Send the heaviest load, bale or material details, narrowest access, worst ground, required working height and target attachments. Hongrui can use those inputs to prepare a machine-and-attachment configuration for quotation.
Discuss the Ranch Package on WhatsApp
Final specifications and included scope are confirmed in the written quotation for the selected configuration.
Repeated ranch tasksBale, pallet or material detailsGate, aisle and overhead dimensionsSurface, slope and wet-season conditionTarget attachments and hydraulic demandDestination and transport plan
Evidence before commitment
Production, Inspection and Delivery Evidence
A professional offer should connect the proposed configuration to evidence that can be checked before dispatch. Availability and document scope are confirmed for the specific order.
Production record
Configuration review, assembly checkpoints and key component traceability where applicable.
Inspection & testing
Function checks, leak inspection and order-specific test items recorded before shipment.
Certificates & documents
Required compliance documents are verified against destination and project requirements before order.
Packing & shipping
Packing method, loading photos and dispatch documents can be included in the delivery file.
Buyer visit or pre-shipment acceptance
Factory visits, remote video inspection or third-party pre-shipment checks can be coordinated when agreed. Published claims are not substituted for order-specific acceptance evidence.
