Heavy Equipment Filters Manufacturer
Protect mining haul trucks, excavators, and industrial machinery from premature engine wear. We engineer OEM-equivalent and aftermarket filters utilizing multi-layer synthetic media to handle severe dust and high-pressure hydraulic circuits.
- OEM-Grade Sealing & Dimensions for direct fitment
- 3,000+ Active Filter Models for mixed fleet management
- Standard models dispatch within 48 hours globally
- ISO 9001:2015 Certified Manufacturing Process
Filters Compatible with Major Heavy Equipment Brands
80+
Export Countries
5,000+
B2B Clients
1M+
Filters Sold Annually
20,000㎡
Factory Area
20+ Yrs
Manufacturing Exp
Heavy Equipment Filter Categories
Engineered to meet or exceed OEM specifications for flow rate, filtration efficiency, and pressure resistance across various machinery systems.
Engine Air Filters
Features nano-fiber media to capture 99.9% of airborne dust down to 5 microns, preventing cylinder scoring in quarry environments.
View Details
Hydraulic Filters
Built with wire-mesh supported micro-glass media to withstand pressure spikes up to 400 bar, protecting sensitive servo valves.
View Details
Engine Oil Filters
Integrates precise bypass and anti-drain back valves to maintain lubrication during cold starts for large diesel engines.
View Details
Fuel Water Separators
Multi-stage coalescing design removes 99% of emulsified water and solid contaminants, safeguarding common rail injectors.
View Details
Cabin Air Filters
Activated carbon layers neutralize exhaust fumes while HEPA-grade media blocks silica dust, ensuring operator safety.
View Details
Transmission Filters
Maintains fluid cleanliness in heavy-duty powershift transmissions, preventing clutch plate scoring and premature failure.
View Details
Coolant Filters
Pre-charged with Supplemental Coolant Additives (SCA) to prevent liner pitting and control scale buildup in cooling systems.
View Details
Tank Breathers
Desiccant breathers absorb moisture and filter particulates from incoming air as fluid levels drop in hydraulic reservoirs.
View DetailsTechnical Specifications
When sourcing filters for heavy machinery fleets, physical dimensions and thread pitches must match OEM housings exactly to prevent bypass leaks. Our engineering data ensures precise compatibility for replacement programs.
| Parameter | Standard Specification Range |
|---|---|
| Filter Media | Cellulose, Micro-glass, Synthetic Nano-fiber, Wire Mesh |
| Filtration Rating | 1μm to 100μm (Absolute and Nominal available) |
| Efficiency | Up to 99.9% (Beta Ratio β>1000 for hydraulic) |
| Working Pressure | 10 Bar (Lube/Fuel) to 420 Bar (High-pressure Hydraulic) |
| Operating Temperature | -30°C to +120°C (FKM/Viton seals for high temp) |
| Thread Size | Metric (M16-M45), UNF (3/4"-16 to 1-1/2"-16) |
| Seal Material | NBR (Nitrile), FKM (Viton), Silicone |
| Valves | Bypass Valve (0.5-2.5 Bar), Anti-drain Back Valve included |
| MOQ | 100 pcs per model (Negotiable for mixed container orders) |
| Lead Time | 15-25 days for bulk production; 48h for stock items |
Overcoming Heavy Duty Filtration Failures
Equipment operating in harsh environments faces unique contamination challenges. Standard automotive-grade filters collapse under commercial workloads.
Common Procurement Risks
-
✕
Media Collapse Under Pressure Cheap hydraulic filters lack internal support tubes, causing media tear during cold-start pressure surges, sending debris directly into pumps.
-
✕
Short Replacement Cycles Low dirt-holding capacity means filters clog quickly in mining sites, forcing frequent maintenance stops and increasing labor costs.
-
✕
Poor Sealing & Bypass Leaks Inaccurate thread pitches or low-grade NBR gaskets shrink under heat, allowing unfiltered oil to bypass the element entirely.
Our Engineered Solutions
-
✓
Reinforced Core Structures We use heavy-gauge perforated steel center tubes and spiral-wound outer wrappers to withstand differential pressures up to 10 Bar.
-
✓
High Dirt-Holding Capacity Deep-pleated synthetic media increases surface area by 25%, extending service intervals from 250 hours to 500+ hours in standard conditions.
-
✓
OEM-Matched Tolerances CNC-machined base plates and FKM (Viton) seals ensure a leak-proof fit even under constant vibration and extreme thermal cycling.
Core Manufacturing Advantages
Why equipment fleet managers and parts distributors trust our filtration products.
OEM Equivalent Quality
Reverse-engineered to match original factory specs for flow restriction and particle capture efficiency.
99.9% Filtration Efficiency
Utilizing imported Ahlstrom and HV media to guarantee β1000 ratings for critical hydraulic systems.
Longer Service Life
Optimized pleat geometry maximizes surface area, delaying pressure drop and reducing maintenance frequency.
Stable Pressure Resistance
Heavy-duty steel housings prevent bursting under cold starts and high-viscosity oil conditions.
Wide Compatibility
Cross-reference database covers over 100,000 OEM part numbers for construction and mining fleets.
High Temp Resistance
Cured plastisol adhesives and premium seals maintain structural integrity up to 120°C operating temps.
Corrosion Resistant
Epoxy-coated housings and treated end-caps prevent rust in high-humidity and marine environments.
Global Export Support
Professional documentation, custom packaging, and consolidated container loading for wholesale buyers.

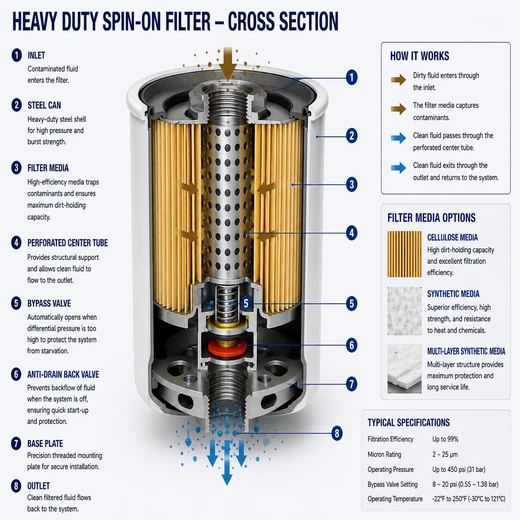

Inside a Heavy Duty Spin-on Filter
Heavy-Gauge Outer Housing
Drawn steel construction resists fatigue from pressure pulsation and external impact in harsh site conditions.
Pleated Filter Media
Resin-impregnated cellulose or synthetic blends with uniform pleat spacing to maximize dirt-holding capacity without restricting flow.
Perforated Center Tube
Provides structural backbone to prevent media collapse under high differential pressure, especially during cold starts.
Bypass Valve
Precision-calibrated spring opens if the filter clogs or oil is too thick, ensuring the engine is never starved of lubrication.
Anti-Drain Back Valve (Silicone)
Keeps oil in the filter when the engine shuts off, preventing dry starts and reducing initial engine wear.
Direct from the Manufacturer
By bypassing middlemen, equipment wholesalers and large fleet operators gain direct access to OEM-level manufacturing capabilities. We handle everything from CAD drawing confirmation to custom brand packaging and mass production stability.
20+
Years Experience
5000+
Filter Models
1M+
Annual Capacity
OEM
& ODM Support
Our Filters vs Cheap Alternatives
| Feature | Our Heavy Duty Filters | Cheap Market Filters |
|---|---|---|
| Filtration Media | Imported HV/Ahlstrom, Multi-layer | Standard single-layer paper |
| Pressure Resistance | Reinforced core, up to 420 Bar (Hydraulic) | Weak plastic/thin steel core, collapses easily |
| Sealing Material | FKM/Viton or Premium NBR (High Temp) | Low-grade rubber, prone to shrinking/leaks |
| Service Life | 500 - 1000 Hours (Depending on application) | 150 - 250 Hours |
| OEM Compatibility | 100% Dimensional Match Guarantee | Inconsistent thread pitch and height |
| Warranty | Full Replacement Guarantee | None |
B2B Procurement Process
Send Inquiry
Provide OEM numbers or equipment models.
Quotation
Receive technical specs and pricing within 24h.
Sample Approval
Test filter samples on your equipment.
Mass Production
15-25 days lead time with strict QC.
Global Shipping
FOB/CIF terms with consolidated loading.
Frequently Asked Questions
What are heavy equipment filters and why are they critical?
How do I identify the correct replacement filter for my excavator?
Can your aftermarket filters safely replace OEM filters?
How often should heavy equipment filters be replaced?
What brands of machinery do your filters fit?
What is your Minimum Order Quantity (MOQ) and lead time?
Do you offer OEM/Custom packaging services?
Related Heavy Equipment Parts
Need Heavy Equipment Filters for Your Fleet?
Send us OEM numbers, equipment models, or dimensions. Our filtration engineers will cross-reference and quote the correct filters within 24 hours.
