COMPACT ACCESS. CONFIGURED FOR THE TASK.

Compact Skid Loaders That Fit the Route Before They Start the Work

For landscaping, greenhouse, warehouse, farm and indoor renovation projects, choose from 300 kg and 500 kg classes, wheeled or tracked undercarriages, and task-matched attachments. Start with your narrowest access point—then size the machine around the work.

WhatsApp an Engineer
850 mmnarrow-body option
300–500 kgclasses
20 MPahydraulic system
Wheel / trackoptions

ROUTE-FIRST SELECTOR

Will the Loader Fit the Whole Route?

Do not approve a loader from body width alone. A machine can clear the doorway while its bucket, forks, hose routing or turning arc cannot. Send us the narrowest width, height, turning point and intended attachment before model selection.

1

Narrowest opening

Gate, door or aisle width.

2

Attachment width

Bucket, forks and hoses included.

3

Turning space

Corners, landings and reversals.

4

Transport clearance

Loading method and vehicle access.

Buyer mistake to avoid

Measuring the bare machine but not the complete working envelope.

CONFIGURATION RANGE

Choose the Capacity Class After Access Is Confirmed

NARROW-ACCESS PRIORITY

300 kg Class

S300 / SL300 / S350 / SL350

850 mm body

For greenhouse rows, side gates, indoor renovation, compact yards and light material handling.

1,960 × 850 × 1,400 mm 900 mm bucket Approx. 920 kg 20 MPa Approx. 2,000 mm lift Up to 10 km/h

Gasoline or diesel depending on configuration. Wheeled or tracked undercarriage available.

MORE LOAD, WIDER WORKING ENVELOPE

500 kg Class

S500 / SL500 / JS500 / JSL500

1,100 mm body

For landscaping, pallet work, yard loading, farm handling and heavier attachments within the confirmed rating.

1,960 × 1,100 × 1,400 mm 1,100 mm bucket Approx. 1,020 kg 20 MPa Approx. 2,000 mm lift Up to 10 km/h

Diesel depending on configuration. Wheeled or tracked undercarriage available.

Final rated load, engine, undercarriage, tire or track package and attachment compatibility are confirmed in the written quotation.

Compact Skid Loader Specifications at a Glance

Specification 300 kg class 500 kg class
Model familiesS300 / SL300 / S350 / SL350S500 / SL500 / JS500 / JSL500
Class300 kg class500 kg class
Approximate body size1,960 × 850 × 1,400 mm1,960 × 1,100 × 1,400 mm
Standard bucket sizeApprox. 900 × 420 × 600 mmApprox. 1,100 × 420 × 600 mm
Approximate machine weight920 kg1,020 kg
Hydraulic pressure20 MPa20 MPa
Lift heightApprox. 2,000 mmApprox. 2,000 mm
Maximum travel speedUp to 10 km/hUp to 10 km/h
Available undercarriageWheeled or trackedWheeled or tracked
Engine choiceGasoline or diesel by configurationDiesel by configuration
Best-fit work profileNarrow-access handling and compact sitesHigher-load work with confirmed clearance
Rated operating load, machine stability, lift geometry and attachment weight matter more than horsepower alone.

SURFACE DECISION

Wheeled or Tracked Compact Skid Loader?

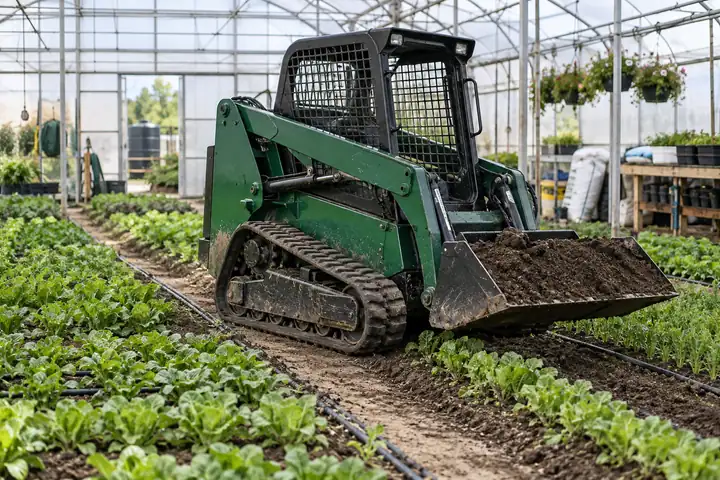

Green tracked compact skid loader working between greenhouse rows

Tracked compact loader

  • Best for: loose soil, mud, landscaped ground and uneven surfaces.
  • Strengths: more traction and flotation, with stronger stability over uneven ground.
  • Plan for: higher undercarriage cost plus regular cleaning and inspection.

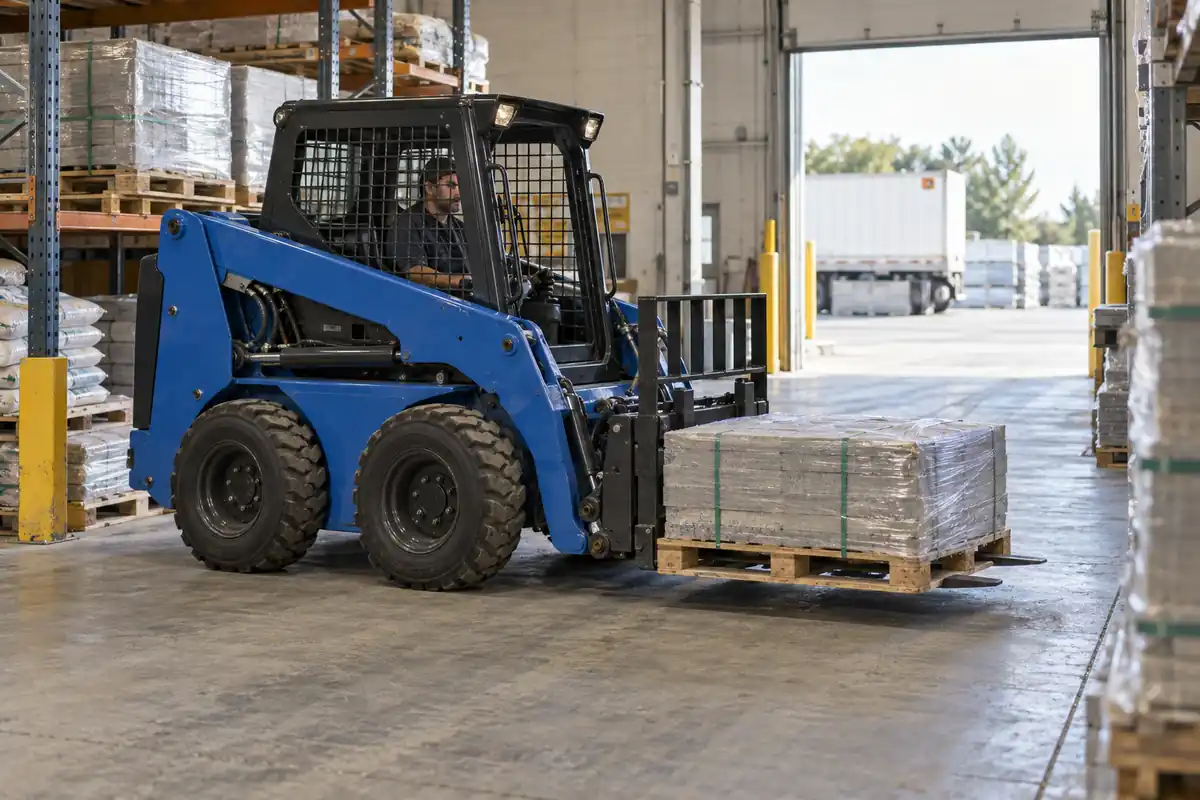

Blue wheeled compact skid loader moving a pallet in a warehouse

Wheeled compact loader

  • Best for: warehouses, paved yards and firm, level travel routes.
  • Strengths: faster on hard ground, simpler transport and lower undercarriage maintenance.
  • Plan for: more ground pressure and less traction on soft terrain.

Choose the surface first: hard floor and frequent travel usually favor wheels; soft, loose or uneven ground often favors tracks.

Built Around the Job Sequence, Not Just the Machine

Green tracked compact skid loader working between greenhouse rows

Greenhouse & Orchard Access

Prioritize narrow width, low ground disturbance, turning space and an attachment that can work without damaging rows or irrigation lines.

Blue wheeled compact skid loader moving a pallet in a warehouse

Warehouse & Yard Handling

Confirm pallet weight, fork length, load center, floor condition, doorway height and the complete lift path.

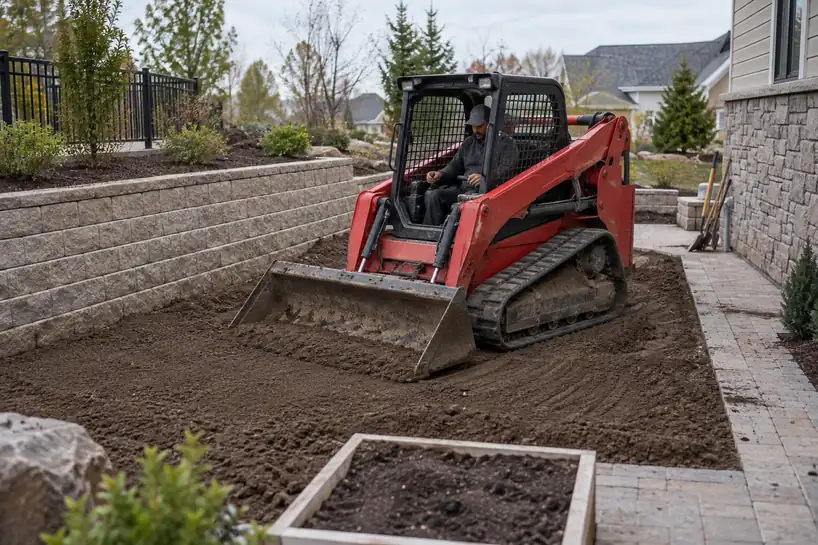

Red tracked compact skid loader grading a residential landscaping site

Landscaping & Residential Work

Match undercarriage to turf or soil, check gate width, and plan bucket, auger, grapple or grading work in the order it will be performed.

One Carrier, Multiple Tasks—Only When the Attachment Match Is Correct

▰

General bucket

↔

Pallet forks

⌁

Auger

⚒

Hydraulic breaker

≋

Sweeper

⌘

Grapple

01

Mechanical interface

02

Required hydraulic flow and pressure

03

Coupler and return line

04

Attachment weight and remaining rated load

A compatible-looking attachment can still be wrong hydraulically or reduce usable load more than expected. Ask for the machine and attachment configuration on the same quotation.

Avoid Costly Fit and Configuration Errors Before Shipment

↔

The body fits, the bucket does not

Confirm the full transport and working envelope.

⌁

The attachment mounts, the hydraulics do not match

Confirm flow, pressure, coupler and return requirements.

↑

The loader lifts less than expected

Include attachment weight and load center in the rating check.

◒

The undercarriage suits the brochure, not the ground

Select wheels or tracks from real surface and maintenance conditions.

Send photos, dimensions, surface conditions, material weight and target attachments. Hongrui can use these inputs to prepare a written configuration for review.

HONGRUI PROCESS

Configuration Support From Build Review to After-Sales Coordination

01

Requirement review

02

Design and machining

03

Welding and assembly

04

Quality inspection

05

Operation guidance

06

Remote troubleshooting and parts coordination

Our role is to help buyers turn site constraints into a confirmable machine-and-attachment specification. The final quotation should state the selected model, engine, undercarriage, attachment interface, hydraulic requirements and included scope.

Explore the broader skid steer loader range Learn about Hongrui

How to Choose a Compact Skid Loader

  1. 1

    Measure the narrowest gate, doorway, aisle, ceiling and turning point.

  2. 2

    Define the heaviest material and include attachment weight and load center.

  3. 3

    Choose wheels or tracks from the real ground surface and travel pattern.

  4. 4

    Match hydraulic flow, pressure, couplers and return-line requirements.

  5. 5

    Confirm transport weight, loading method, packing scope and local unloading plan.

  6. 6

    Put the complete model and attachment configuration in the quotation.

Compact Skid Loader Questions Buyers Ask Before Ordering

What are the key features to consider when purchasing a compact skid loader?+
Start with access width and height, then confirm rated operating load, machine and attachment weight, lift geometry, undercarriage, hydraulic flow and pressure, couplers, service access and transport plan. The most powerful engine is not automatically the best-fit loader.
Which compact skid loader configuration works best for landscaping?+
The best configuration depends on gate width, soil condition, turf protection and the attachment sequence. Tracks usually provide more flotation and traction on soft or uneven ground, while wheels can be simpler and faster on firm surfaces. Confirm bucket, auger, grapple or grading-tool compatibility before ordering.
How do tracked loaders compare with wheeled skid steers for residential work?+
Tracked units suit loose soil and uneven landscaping sites but require more undercarriage cleaning and inspection. Wheeled units suit firm driveways, courtyards and yards and generally cost less to maintain. The complete attachment width still needs to fit the access route.
How should lifting capacity and engine power be compared?+
Do not use engine power as a shortcut for capacity. Compare the confirmed rated operating load, stability, lift geometry, attachment weight and load center. Ask for the selected machine and attachment to be stated together on the quotation.
What maintenance should be planned for a diesel compact skid loader?+
Daily checks normally include fluid levels, leaks, hoses, couplers, attachment locks, tires or tracks, cooling-air paths and visible damage. Cleaning and service intervals must follow the exact engine and machine manuals supplied with the selected configuration.
Is a compact skid loader better than a mini excavator?+
A compact skid loader is usually better for repeated loading, carrying, sweeping, pallet work and fast attachment changes on confined sites. A mini excavator is generally better for deeper excavation and reach. Choose from the dominant task rather than machine size alone.
Can one compact loader use several attachments?+
Yes, when the attachment interface, hydraulic requirements, weight and controls match the selected loader. Confirm every planned attachment before purchase rather than assuming universal compatibility.
Red tracked compact skid loader grading a residential landscaping site

START WITH THE CONSTRAINTS

Send the Route. Get a Configuration You Can Review.

Share your narrowest access dimensions, surface, material weight and required attachments. Hongrui will use them to recommend a suitable class and prepare the configuration details for your quotation.

Send Details on WhatsApp

No generic model push—start with the constraints of your worksite.
