High-Performance
Self Loading Concrete Mixer
Mix, Load, Transport & Discharge in One Single Machine.
- Save Up to 60% on Labor Costs
- 4WD Off-Road Performance for Rough Terrain
- GPS & Electronic Weighing Optional
- Capacities Available from 1.2m³ to 6.5m³
Capacity Range
1.2m³ - 6.5m³
Drum Rotation
13-16 RPM
Engine Options
Cummins / Yuchai
Drive Type
4x4 WD
What Is a Self Loading Concrete Mixer?
A self-loading concrete mixer is a specialized piece of construction machinery that combines the functions of a wheel loader, a concrete mixer, and a transport truck into a single unit. It is designed to independently load raw materials (sand, gravel, cement, and water), mix them into high-quality concrete, and transport the mixture directly to the pouring site.
How does it work?
The operator uses the front bucket to scoop aggregates and cement into the rotating mixing drum. The onboard water tank supplies water, and the integrated weighing system ensures the correct mix ratio. Once mixed, the 4WD chassis allows the machine to navigate rough terrains to deliver the concrete.
Who uses it?
It is heavily utilized by construction contractors, rural infrastructure builders, and mining companies who operate in remote areas or sites where setting up a stationary batching plant is not cost-effective.
In simple words: It's a mobile mini-batching plant on wheels that saves you the cost of hiring separate loaders, mixer trucks, and manual laborers.
How Does It Work? 6 Simple Steps
From raw materials to finished concrete pouring, controlled by just one operator.
Self Loading
The hydraulic front bucket automatically loads aggregates and cement into the drum.
Weighing
Onboard electronic sensors weigh materials to ensure precise concrete formulation.
Mixing

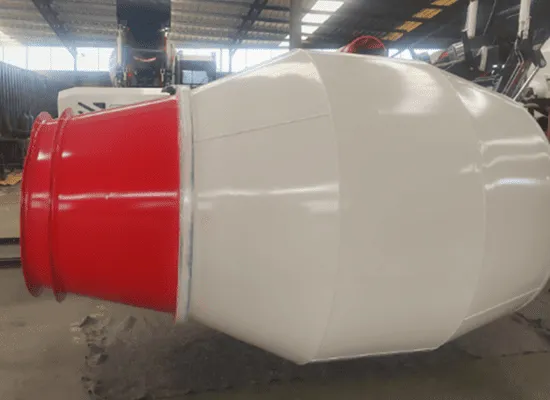

Water is pumped in, and the bi-directional drum rotates rapidly to mix the concrete homogeneously.
Transportation
The 4WD chassis transports the fresh concrete directly to the pouring site, even on muddy roads.
270°/360° Discharge
The drum can slew horizontally, allowing concrete to be poured at various angles around the machine.
Cleaning
Built-in high-pressure water pump allows the operator to wash the drum easily after the job is done.

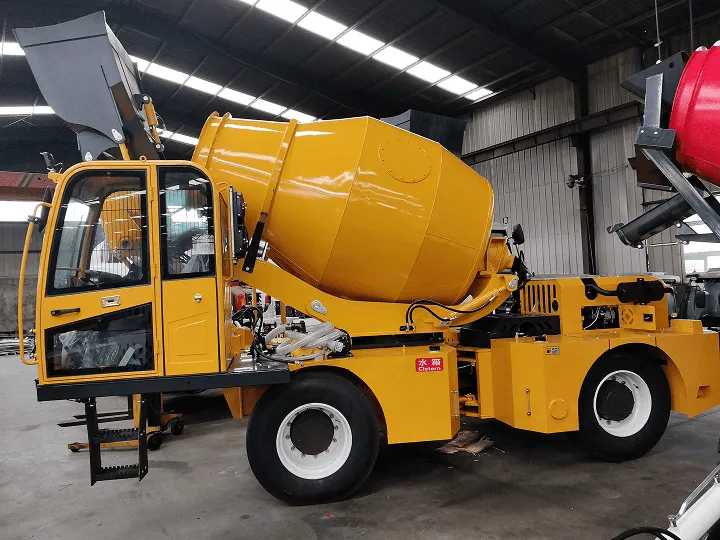

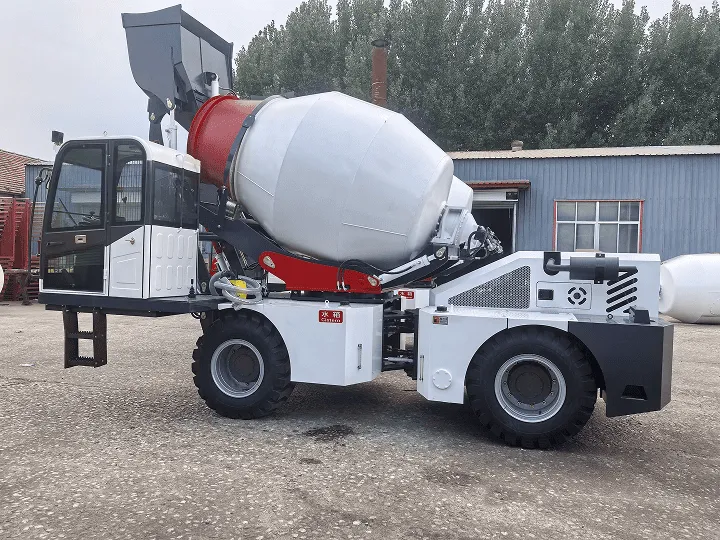

Self Loading Concrete Mixer Models
Choose the right capacity for your project volume. All models feature 4WD and robust engines.
1.2m³ Self Loading Mixer
- Capacity: 1.2 m³/batch
- Output: 4.8 - 6 m³/h
- Engine Power: 55 kW
- Best For: Rural Roads, Small Housing
2.6m³ Self Loading Mixer
- Capacity: 2.6 m³/batch
- Output: 10.4 - 13 m³/h
- Engine Power: 78 kW
- Best For: Municipal, Mid-size Buildings

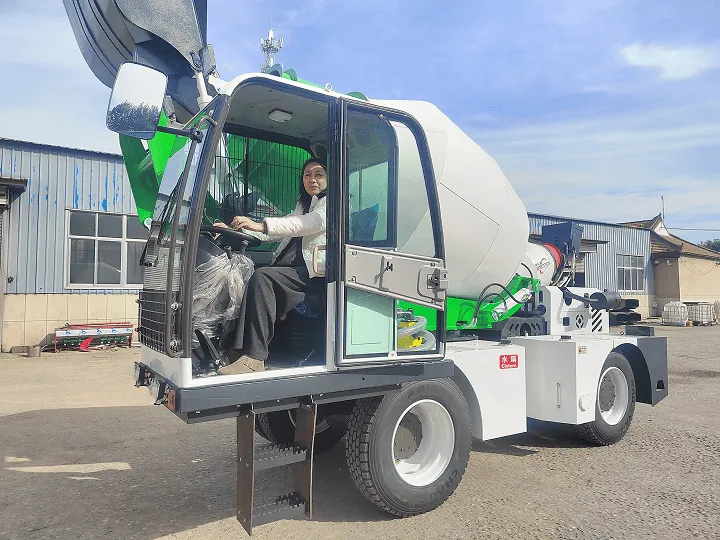

4.0m³ Self Loading Mixer
- Capacity: 4.0 m³/batch
- Output: 16 - 20 m³/h
- Engine Power: 92 kW
- Best For: Mining, Tunnel, Large Projects

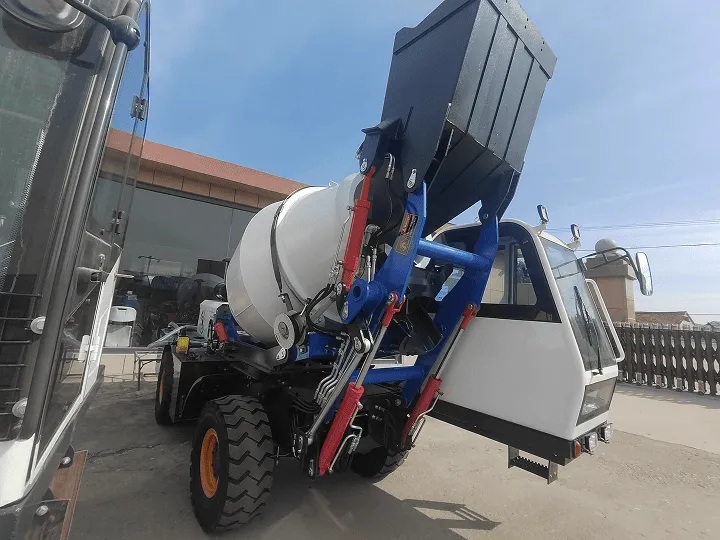

Other available models: 2.0m³, 3.5m³, 5.5m³, and 6.5m³.
Request Full Catalog & Price ListTechnical Specifications
Comparison of our most popular models.
| Parameter | 1.2m³ Model | 2.6m³ Model (Hot) | 4.0m³ Model |
|---|---|---|---|
| Concrete Yield (per batch) | 1.2 m³ | 2.6 m³ | 4.0 m³ |
| Drum Capacity | 1700 L | 3500 L | 5300 L |
| Engine Power | 55 kW / 75 HP | 78 kW / 106 HP | 92 kW / 125 HP |
| Drive Type | 4x4 WD | 4x4 WD | 4x4 WD |
| Max Speed | 25 km/h | 30 km/h | 35 km/h |
| Gradeability (Climbing) | 30% | 30% | 30% |
| Overall Weight | 4,200 kg | 6,500 kg | 8,500 kg |
Versatile Applications
Built to conquer the toughest environments where traditional mixer trucks cannot reach.
Road Construction
Pain: Long distance from batching plants.
Solution: On-site mixing ensures fresh concrete and continuous paving.
Rural Infrastructure
Pain: Narrow, muddy roads block large trucks.
Solution: Compact size and 4WD easily navigate rural terrain.
Mining & Tunnels
Pain: Confined spaces and steep gradients.
Solution: 270° discharge and strong gradeability fit perfectly.
Municipal Projects
Pain: Scattered small-volume concrete needs.
Solution: Mix exactly what you need, reducing material waste.
Why Are Contractors Switching to Self Loading Mixers?
Transforming traditional concrete production into a highly efficient, one-man operation.
Traditional Methods (The Pain)
- ✗ Requires 5-8 laborers for loading and mixing.
- ✗ Needs multiple machines (loader, mixer, tractor).
- ✗ Inconsistent concrete quality due to manual estimation.
- ✗ High material waste on the ground.
- ✗ Difficult to transport wet concrete in remote areas.
zentramo Solution
- ✓ Only 1 operator needed for the entire process.
- ✓ 4-in-1 Machine: Loads, weighs, mixes, and delivers.
- ✓ Electronic Weighing: Ensures precise C20-C40 concrete grades.
- ✓ Zero Waste: Materials go straight from bucket to drum.
- ✓ 4WD Mobility: Drives directly to the pouring point anywhere.
60%
Labor Cost Saved
40%
Productivity Increase
1
Man Operation
<6m
Months Fast ROI
How to Choose the Right Model?
Step 1: Daily Output Needed
• < 50 m³/day ➔ 1.2m³ - 2.0m³
• 50 - 100 m³/day ➔ 2.6m³ - 3.5m³
• > 100 m³/day ➔ 4.0m³ - 6.5m³
Step 2: Site Conditions
• Narrow roads/villages ➔ 1.2m³ (Compact)
• Standard construction ➔ 2.6m³ (Versatile)
• Rough mining roads ➔ 4.0m³+ (Heavy Duty)
Step 3: Configurations
• Strict quality? ➔ Add Electronic Weighing
• Hot/Cold climate? ➔ Add A/C Cabin
• Fleet management? ➔ Add GPS Tracking
Still not sure? Let our engineers calculate the best ROI for your project.

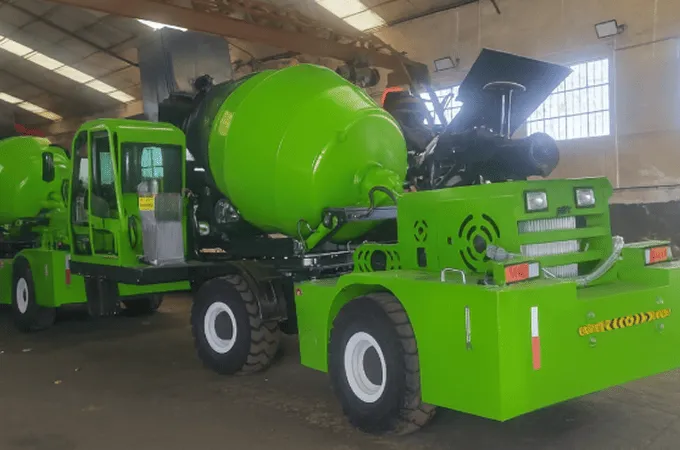

Get Free ConsultationOEM Manufacturing Strength

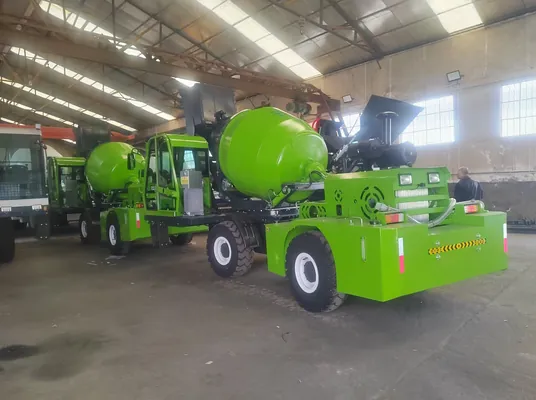

State-of-the-art production facilities ensuring every zentramo mixer is built to last.
Strict Quality Control
Raw Material
Steel Inspection
Welding
Flaw Detection
Assembly

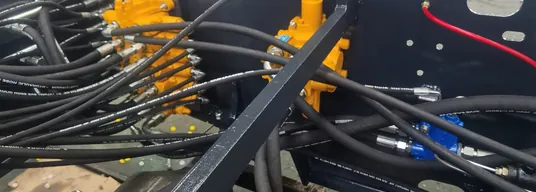

Hydraulic Test
Trial Run
48H Load Testing
Delivery
Final PDI
Certified Quality & Global Trust
Frequently Asked Questions
Everything you need to know about self loading concrete mixers.
What is a self loading concrete mixer?
How many cubic meters should I choose?
Can one person really operate it?
How is the concrete quality compared to a batching plant?
Can it work on rough terrain or muddy roads?
What engine brands do you use?
How long is the delivery time?

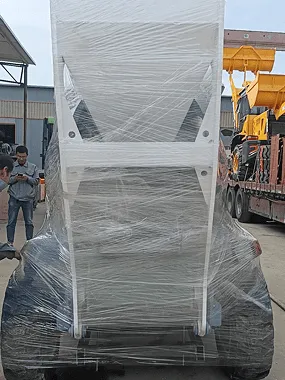

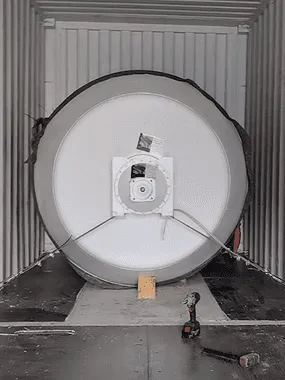

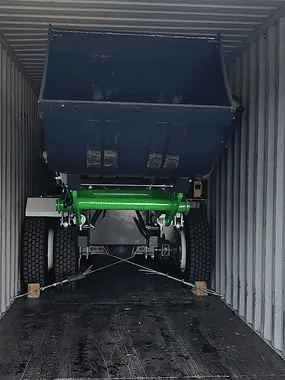

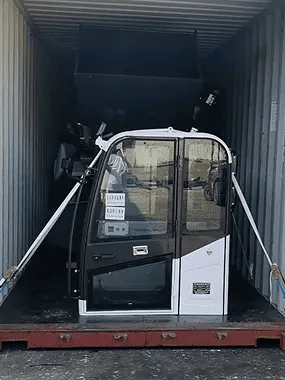

How is the machine shipped?
Have more questions? Contact our technical team.
