Industrial Generator Set Manufacturing & Customization
Supplying 50kW to 2500kW diesel and gas power generation solutions. Engineered for continuous operation in data centers, mining sites, and manufacturing plants. Direct shipping from our Jining facility.

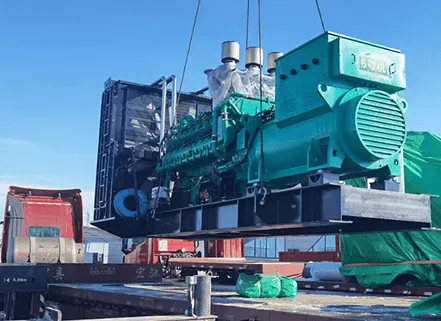

What is an Industrial Generator Set?
An industrial generator set (genset) is a packaged combination of a prime mover (typically a diesel or gas engine) and an alternator, designed to convert fuel energy into reliable electrical power.
In critical B2B applications where grid power is unstable or unavailable, commercial operations face severe downtime. Our generator sets integrate heavy-duty engines with brushless alternators and microprocessor-based intelligent controllers. This structural design allows for automatic mains failure (AMF) detection and load transfer within 10 seconds, ensuring zero operational disruption for manufacturing lines and data centers.
- Engine Integration: Compatible with global brands for standardized maintenance.
- Alternator Specs: 100% copper wire, Class H insulation, IP23/IP44 protection.
- Control System: Deep Sea or ComAp modules for remote monitoring via RS485.
Engineered Power Generation Solutions
Select the appropriate enclosure and fuel type based on your site's environmental constraints and load profile.
Silent Generator Set
Acoustic enclosure designed for urban areas. Reduces noise levels to 68-75dB at 7 meters. Weather-proof canopy prevents water ingress, suitable for outdoor commercial building installation without a dedicated plant room.
Request Specs

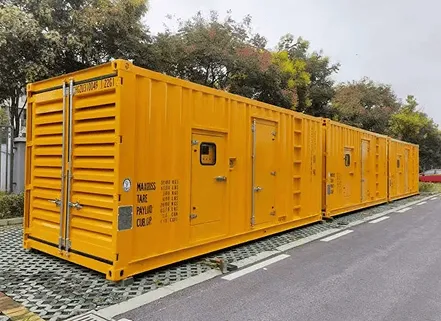

Containerized Generator Set
Housed in standard 20ft or 40ft ISO containers. Built for harsh mining sites and large EPC projects. Features heavy-duty air filtration, internal fuel tanks, and CSC certification for easy global sea freight.
Request Specs

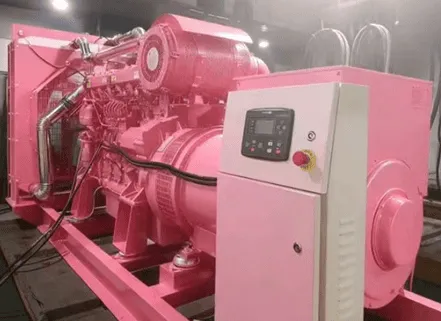

Open Type Generator Set
Skid-mounted open-frame structure. Ideal for indoor installation in factory plant rooms with existing soundproofing. Offers maximum cooling efficiency and straightforward access for routine maintenance.
Request Specs

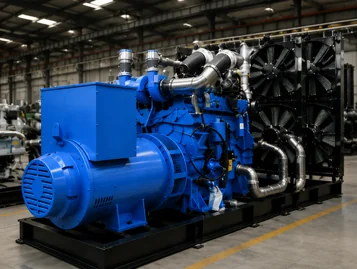

Gas Generator Set
Utilizes natural gas, biogas, or LPG. Designed for farms and breeding bases looking to lower fuel costs and emissions. Equipped with specialized gas mixing valves and spark ignition systems for stable combustion.
Request Specs
ATS Generator System
Integrated Automatic Transfer Switch. Solves the pain point of manual switching during blackouts. Continuously monitors grid voltage and executes load transfer to the backup generator within milliseconds.
Request Specs

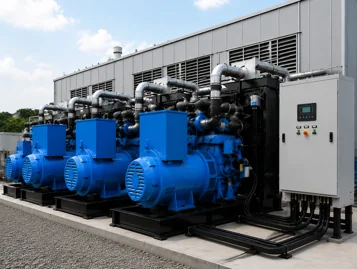

Paralleling Generator System
Synchronizes multiple generator sets to act as a single power source. Provides redundancy for data centers and scales output dynamically based on load demand, optimizing fuel consumption across the fleet.
Request SpecsStandard Technical Parameters
Our standard production line accommodates a wide range of specifications. For unique voltage requirements or specific alternator brands required by local EPC tenders, our engineering team provides custom configuration.
| Parameter Category | Standard Specification Range |
|---|---|
| Prime Power Range | 50 kW to 2000 kW (62.5 kVA to 2500 kVA) |
| Rated Voltage | 110V/220V, 230V/400V, 480V, High Voltage (Custom) |
| Frequency / Phase | 50Hz / 60Hz, 3-Phase 4-Wire |
| Engine Integration | Cummins, Perkins, Weichai, Yuchai, Volvo Penta |
| Alternator Type | Brushless, Self-exciting, AVR regulated (Stamford, Leroy Somer type) |
| Controller Unit | Deep Sea (DSE), ComAp, SmartGen (AMF module standard) |
| Base Fuel Tank | 8 to 12 hours continuous running capacity (customizable) |
| Protection Grade | IP23 (Open), IP44/IP54 (Silent/Containerized) |
| Cooling Method | Closed water-cooled radiator with engine-driven fan |
Industrial Backup Power Applications
Different environments impose distinct constraints. We configure enclosure dimensions, filtration, and fuel systems based on your site's physical reality.
Factory Manufacturing
Constraint: High inductive loads from motors. Solution: Oversized alternators to handle starting currents without voltage dips.
Data Centers
Constraint: Zero tolerance for outage. Solution: Paralleling systems with N+1 redundancy and Tier III/IV compliant ATS response.
Mining Sites
Constraint: Heavy dust and remote location. Solution: IP54 containerized sets with cyclonic air filters and extended 24h fuel tanks.
Hospitals
Constraint: Strict noise limits and life-safety codes. Solution: Super silent canopies (<65dB) with critical grade exhaust silencers.
Resolving Power Generation Bottlenecks
Unpredictable Grid Outages causing Production Scrap
Manual start generators require operators to physically walk to the plant room, resulting in 5-15 minutes of downtime. In continuous manufacturing, this ruins batches and damages sensitive CNC tooling.
Our Solution: SmartGen/Deep Sea controllers integrated with motorized ATS. Detects grid voltage drop instantly, starts the engine, and transfers load in under 10 seconds automatically. Zero manual intervention required.
Rapid Cabinet Corrosion in Coastal/Harsh Environments
Standard painted canopies peel and rust within 12 months when exposed to salty air or high humidity, exposing internal electrical components to moisture and causing fatal short circuits.
Our Solution: Enclosures fabricated from cold-rolled steel, treated with a phosphate wash, and finished with electrostatic powder coating. Stainless steel hinges and locks prevent rust points, extending outdoor lifespan by 5+ years.
Manufacturing & Engineering Advantages
100% Load Bank Testing
Every single unit undergoes rigorous testing at 25%, 50%, 75%, 100%, and 110% load capacity before dispatch to guarantee stable output.
Global Engine Integration
We partner directly with Cummins, Perkins, and local top-tier brands. This ensures you can source maintenance parts locally anywhere in the world.
Multiple Safety Protections
Controllers programmed with auto-shutdown for low oil pressure, high water temperature, over-speed, and over-crank, protecting the engine block from fatal damage.
Large Spare Parts Inventory
We maintain a massive inventory of AVRs, filters, and controllers. If a component fails post-warranty, we DHL replacements within 48 hours to minimize downtime.
Factory Direct Supply
As a true manufacturer, we eliminate trading company margins. You communicate directly with our engineers for custom drawings, cutting lead times by 30%.
Custom Power Solutions
Need specific dimensions for a tight basement? Or dual-frequency for rental fleets? Our R&D team provides complete cabinet drawings for your approval before production.
Open vs. Silent Generator Set: Which to Choose?
| Feature | Open Type Generator | Silent Type Generator |
|---|---|---|
| Enclosure Structure | Exposed engine & alternator on steel skid. | Fully enclosed acoustic canopy with sound-absorbing foam. |
| Noise Level (at 7m) | High (Approx. 95-105 dB) | Low (Approx. 68-75 dB) |
| Installation Environment | Requires dedicated, soundproofed indoor plant room. | Can be installed outdoors, weather-resistant. |
| Cooling Efficiency | Maximum natural airflow. | Relies on designed intake/exhaust louvers. |
| Best Suited For | Factories with existing generator rooms, remote agriculture. | Hospitals, commercial buildings, residential proximity. |
How to Choose the Right Generator Set
Load Calculation
Identify total running wattage and starting wattage (especially for inductive motor loads). Add a 20% margin for future expansion.
Prime vs. Standby
Determine if you need continuous Prime Power (off-grid) or Standby Power (emergency backup only). This dictates engine rating.
Site Environment
Assess space, noise restrictions, and weather. This decides between Open, Silent Canopy, or Containerized enclosures.
Control & ATS
If you require automatic startup during blackouts, specify an ATS (Automatic Transfer Switch) and an AMF compatible controller.
Not sure about your load requirements? Let our engineers calculate it for you.

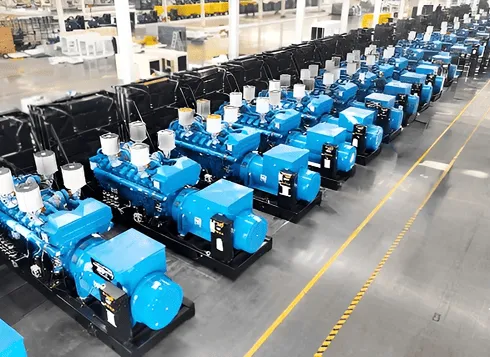

Get Free Load CalculationInside Our Generator Manufacturing Facility
From sheet metal cutting to final load testing, we control the entire production process in-house to ensure batch stability and strict adherence to your custom specifications.
Certified Quality Assurance
Our products comply with international standards. Every generator set is accompanied by a detailed factory test report covering voltage regulation, frequency stability, and load acceptance.
- ✓ ISO 9001:2015 Quality Management System
- ✓ CE Certification for European Markets
- ✓ Pre-shipment Third-Party Inspection (SGS/BV) available
Global Shipping & Packaging
To ensure your equipment arrives in pristine condition, we utilize industrial-grade export packaging. We handle container loading in our factory to prevent transit damage.
Trusted by Industries in 50+ Countries
From EPC contractors in Southeast Asia to mining operators in Africa, our generator sets provide reliable prime and standby power under the most demanding global conditions.
Request a Custom Generator Solution
Tell us your required power output (kW/kVA) and application. Our engineers will reply with a detailed technical proposal and quotation within 24 hours.
Frequently Asked Questions About Generator Sets
Expert answers to common B2B procurement queries.
What is the difference between Prime Power and Standby Power?
How do I calculate what size generator set I need?
What is an ATS and do I need it?
What is the standard delivery time for an industrial generator set?
Can your generator sets be customized?
How often should a diesel generator be maintained?
